Enamel Reactor Kettle / Lined Glass Reactor Kettle

Enamel Reactor Kettle / Lined Glass Reactor Kettle
 Application
it is wide applied to industry of chemicals, food, paint, silicon, medicals and so on. it functions as evaporation, synthesis, polymerization, saponification, sulfonation, chlorination, and nitration.
 Working principle
the machine enamelsl with high silicon content in the fetal surface of metallic iron 930 ° C high-temperature calcination it has a similar chemical stability of glass and metal strength of.

 Introduction

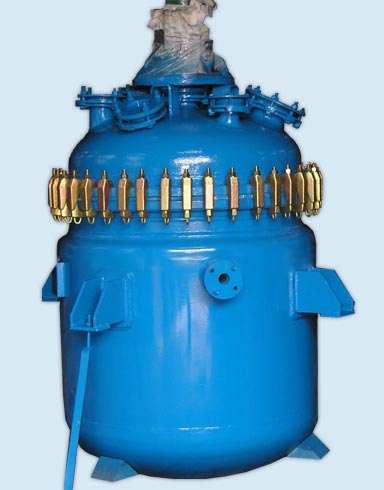

搪瓷反应釜实景图

Characteristic

  • Anchor style, frame style,
  • Oar style and turbo style.
  • Cycloid needle-wheel adapted
  • Nip-sheath sealing, steam-heating, electric heating
  • And conducting heat oil to meet the technology
  • It is customizing according to ur requirements

 Power Supply: 380V, 50/60Hz(Can be customized)

Materials; The part contacting with materials is SS304 or SS316L.

Seal: Dual End Mechanical Seal (Pressure Balance Device is optional.


Technical parameter

Nominal Capacity(L)

Actual capacity(L)

Electric Power
(KW)

Jacket volume
(L)

Inside pot size
(φmm)

Outer pot size(φmm)

Reducer Model

motor(n/kw)

speed
(n/min)

50L

61L

3×2

95L

400

600

m3

1450/0.6

60-80

100L

120L

6×2

120L

500

700

m3

1450/0.6

60-80

200L

247L

6×3

200L

600

800

m4

1450/1.5

60-80

300L

355L

6×3

250L

700

900

m4

1450/1.5

60-80

500L

589L

9×4

290L

900

1100

m6

1450/2.2

60-80

1000L

1215L

12×4

560L

1200

1400

m8

1450/4

60-80

2000L

2244L

15×5

750L

1400

1600

m8

1450/4

60-80

3000L

3201L

15×5

1015L

1600

1800

m8

1450/7.5

60-80

4000L

4020L

15×5

1226L

1600

1800

m10

1450/7.5

60-80

5000L

5170L

18×5

1400L

1800

2000

m10

1450/7.5

60-80



(搪瓷反应釜/搪玻璃反应釜结构图)
