Vacuum homogenization emulsifying machine

Vacuum homogenization emulsifying machine
 Application
This equipment is mainly used for high viscosity emulsion, in particular cream, ointment, emulsion products manufacturing
 Working principle
The materials are heated and mixed in the water pot and the water pot, then it was pump to the emulsion pot by the vacuum pump. In the emulsion pot , there is a scraper which whirls with high speed to shear the materials. Next, the materials flow to the homongenizer and finally realize vacuum suction.

 Introduction

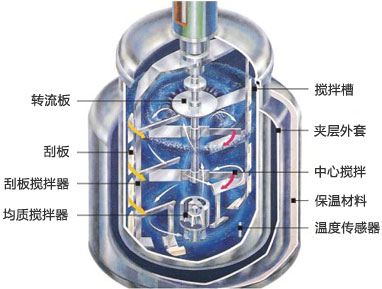

真空均质乳化机结构

Structure
The machine is composed of emulsion pot (which can lift the lid, with flip-type pot body) water pot, the pan, vacuum devices, heating and temperature control system, cooling system, electrical control system, etc.

Features:

  • The matrerial pot is auotomatic lifting. The materilas are sucked to emulsion pot by pipeline in the water pot and the oil
  • cooling system is installed, it's easy control, convenient for operation, theat preservation
  • Small fineness, time saving, high effect in mixing, dispersing,homongenizing, and emulsion.
  • The parts contact with materials are made of  SS 304\SS 316. Both side are miror polished
  • The homogenizing mixing and paddle mixing can be used independently.
  • It adapts heating conduct pipe to heat.
  •
  YT-VACUUM HOMONGENIZER YT-10 YT-30 YT-50 YT-100 YT-150 YT-200 YT-200 YT-300 YT-500
EMULSION POT DESIGN VOL (L) 10 30 50 100 150 200 200 300 500
CAPACITY (L) 8 25 40 80 120 120 160 240 400
SCRAPER POER (KW) 0.18 0.75 0.75 1.1 1.1 1.5 1.5 1.5 2.2
SCRAPER SPEED (RPM) 10.120
HOMONGENIZER POER (KW) 0.55 1.5 1.5 2.2 3 4 7.5 11 -
HOMONGENIZER SPEED 2800
WATER POT DESIGN VOL (L) 5 20 35 60 90 120 180 300 -

CAPCITY (L)

4 16 28 50 75 100 150 250 -
MIXING POWER (KW) 0.018 0.18 0.18 0.55 0.55 0.75 0.75 1.1 -
MIXING SPEED (RPM) 80 60·1000
OIL POT DESIGN VOL (L) 5 15 25 40 60 80 120 200 -

CAPCITY (L)

4 12 20 35 50 65 100 165 -
MIXING POWER (KW) 0.018 0.37 0.37 0.55 0.55 0.75 0.75 1.1 -
MIXING SPEED (RPM) 80
VACUUM MOTOR POWER (KW) 0.12 - - - 0.55 2.2 1.1 1.5 1.5
VACUUM (MPA) -0.09
LIFTING SYSTEM MOTOR POWER (KW)   - - - 0.75 1.1 1.1 2.2 2.2
LIFTING SYSTEM MANUAL ELECTRONIC HYDRAULIC



 Notice
It is costomizable. But please kindly send us the specific demand when you make a enquiry. Thanks for your understanding!
